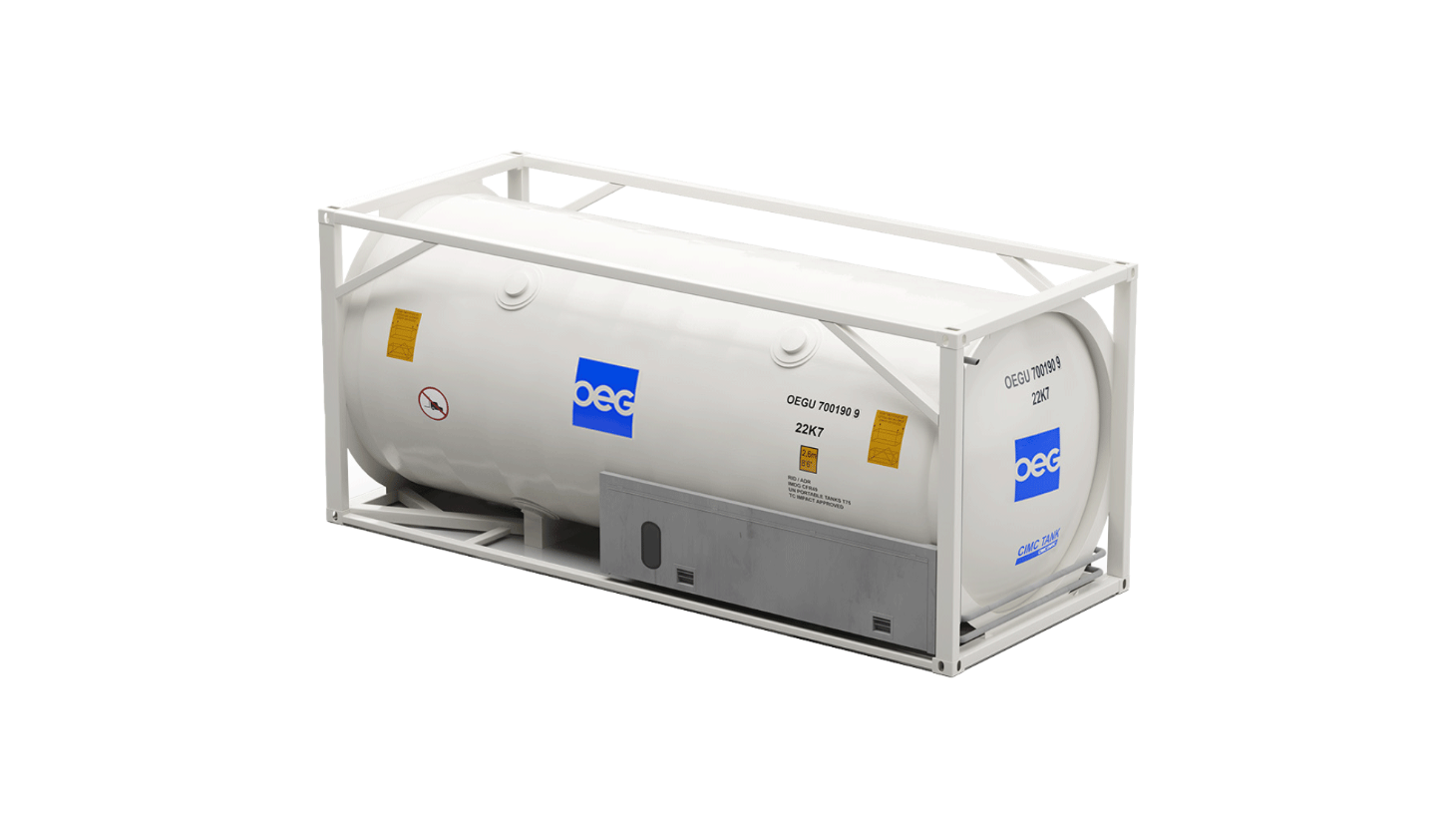

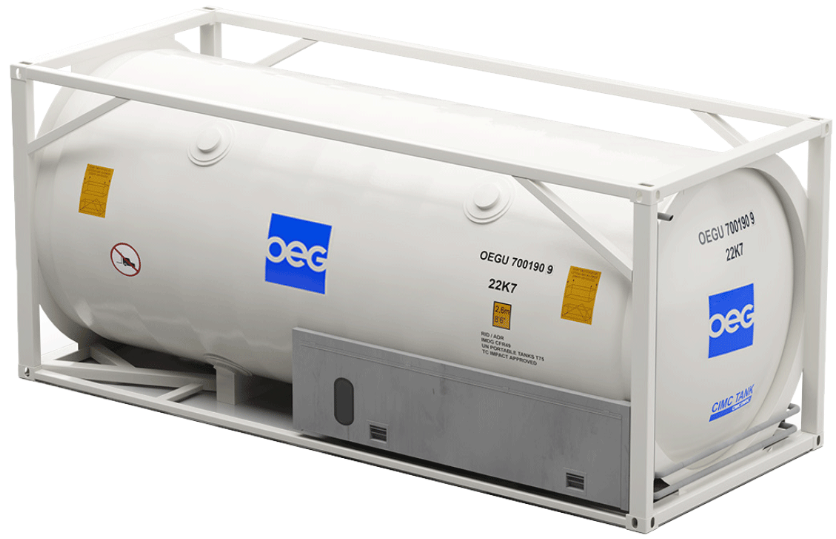

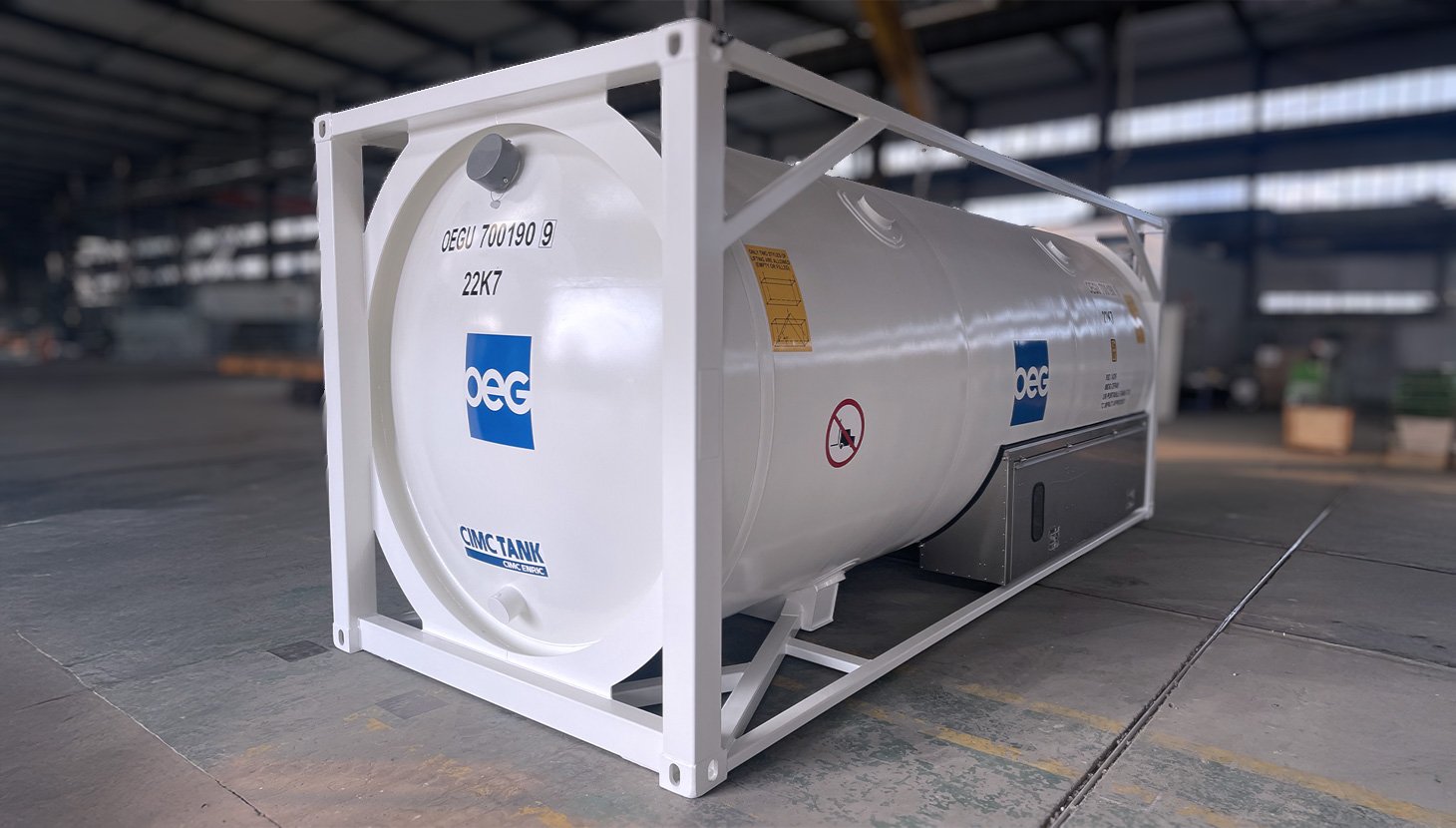

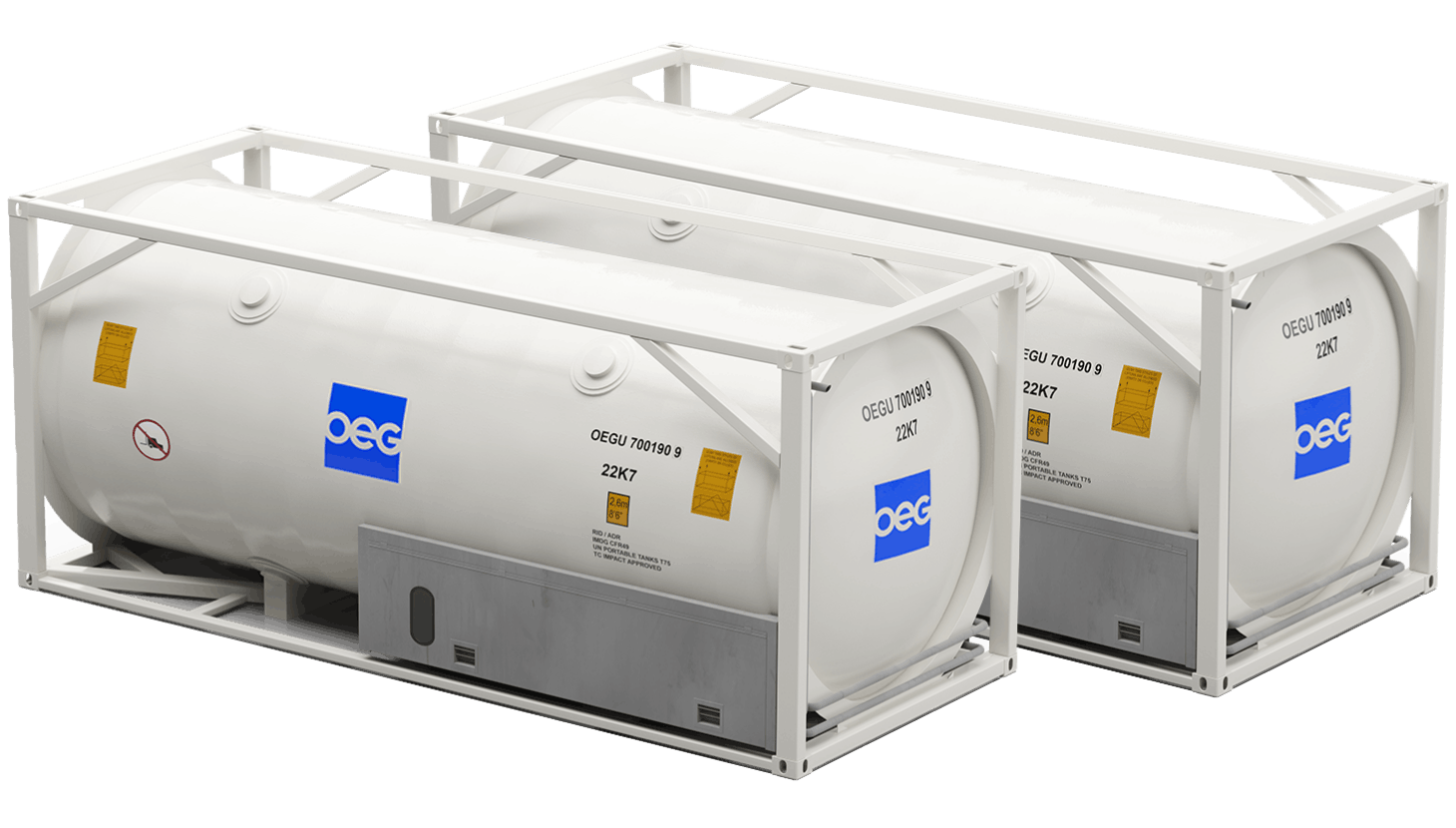

Cryogenic ISO Tanks available for lease or purchase
OEG offers a fleet of 20ft and 40ft T75 Cryogenic ISO Tank Containers to the industrial gas market from our network of over 60 locations worldwide. The cryogenic tanks are specifically used for the transportation and storage of Class 2 refrigerated liquified gases.
Features
- Double-wall vacuum with state-of-the-art multi-layered super-insulation
- International approvals for products like Nitrogen (LIN), Oxygen (LOX), Argon (LAR), Carbon Dioxide
- (CO2), Nitrous Oxide (N2O), Ethylene, and LNGs
- Higher working pressure of 22 bar
For order pricing and estimated delivery times, please contact us.
OEG offers rental, leasing and support services for their fleet of intermodal cryogenic tanks.

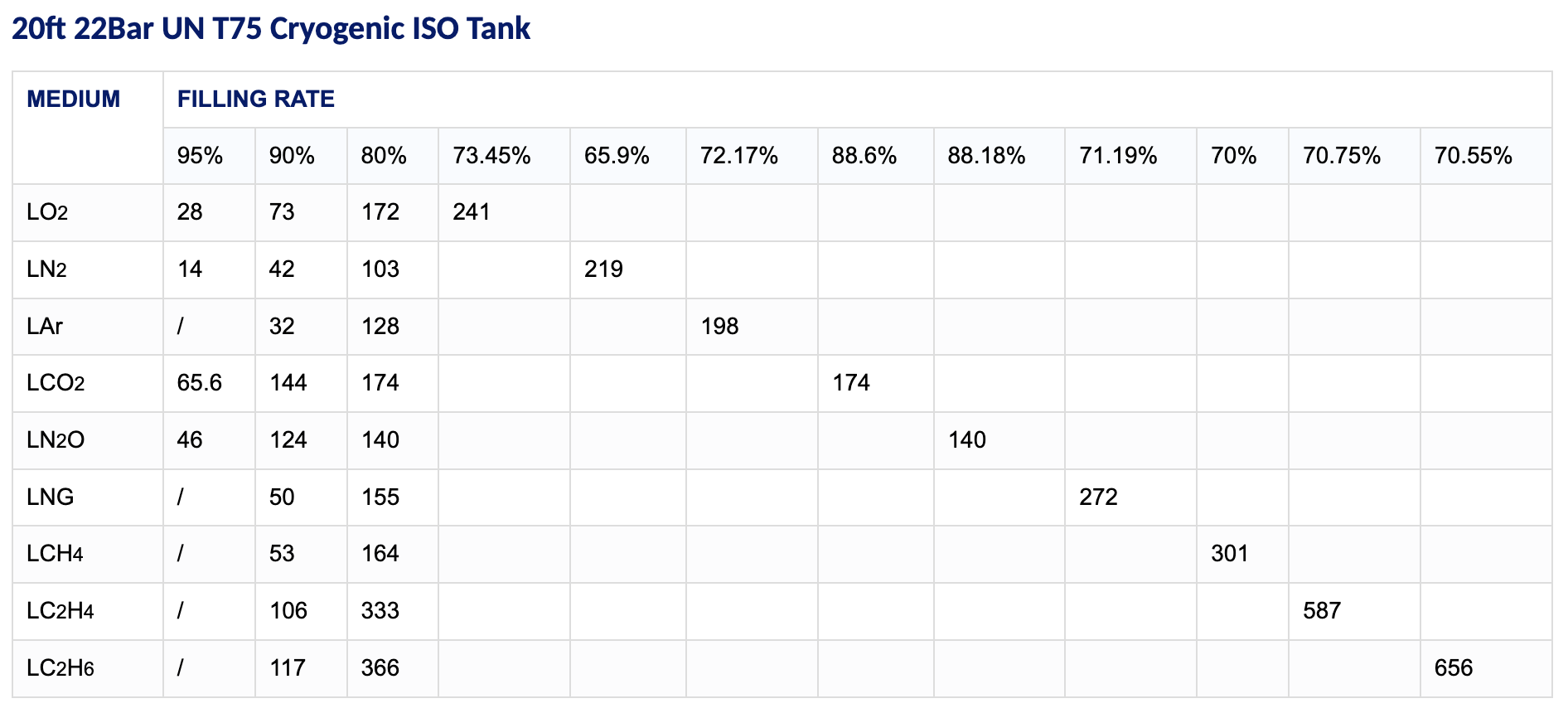

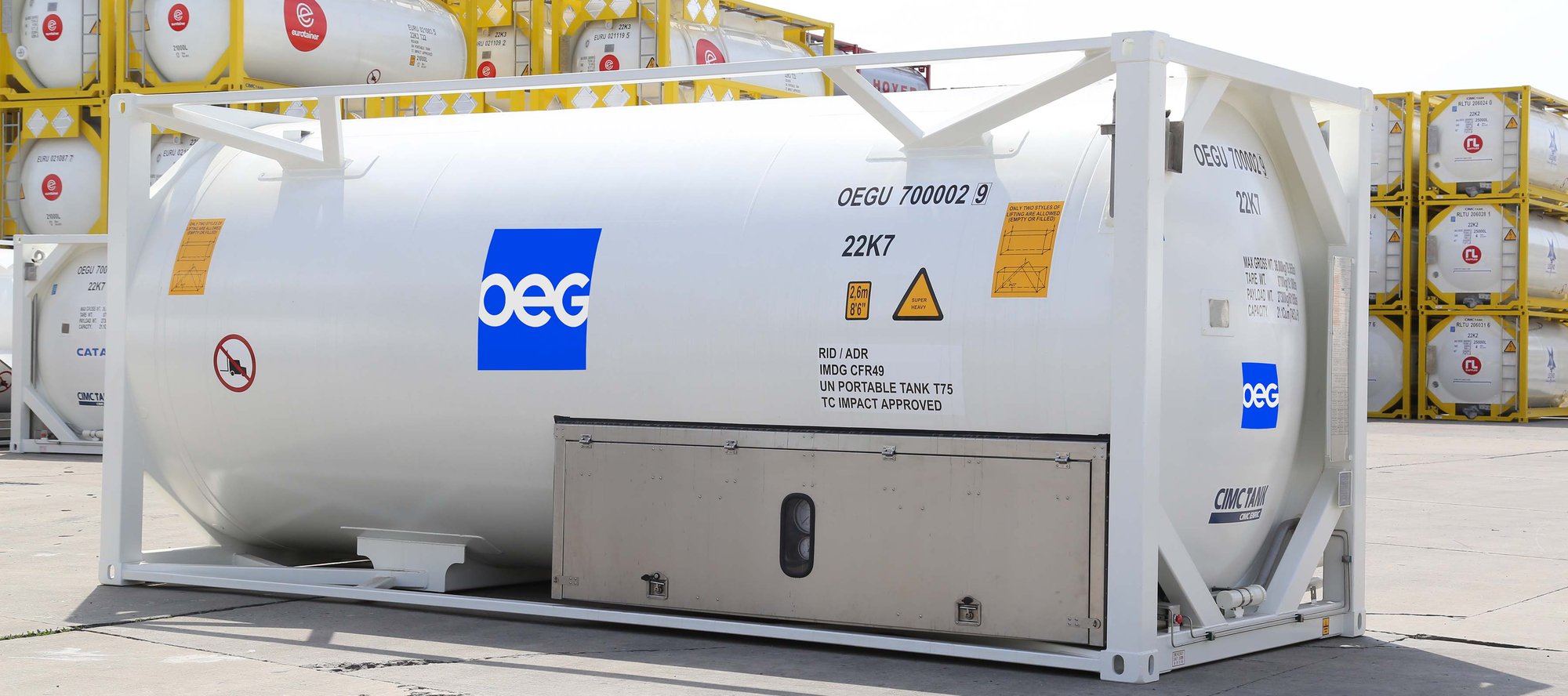

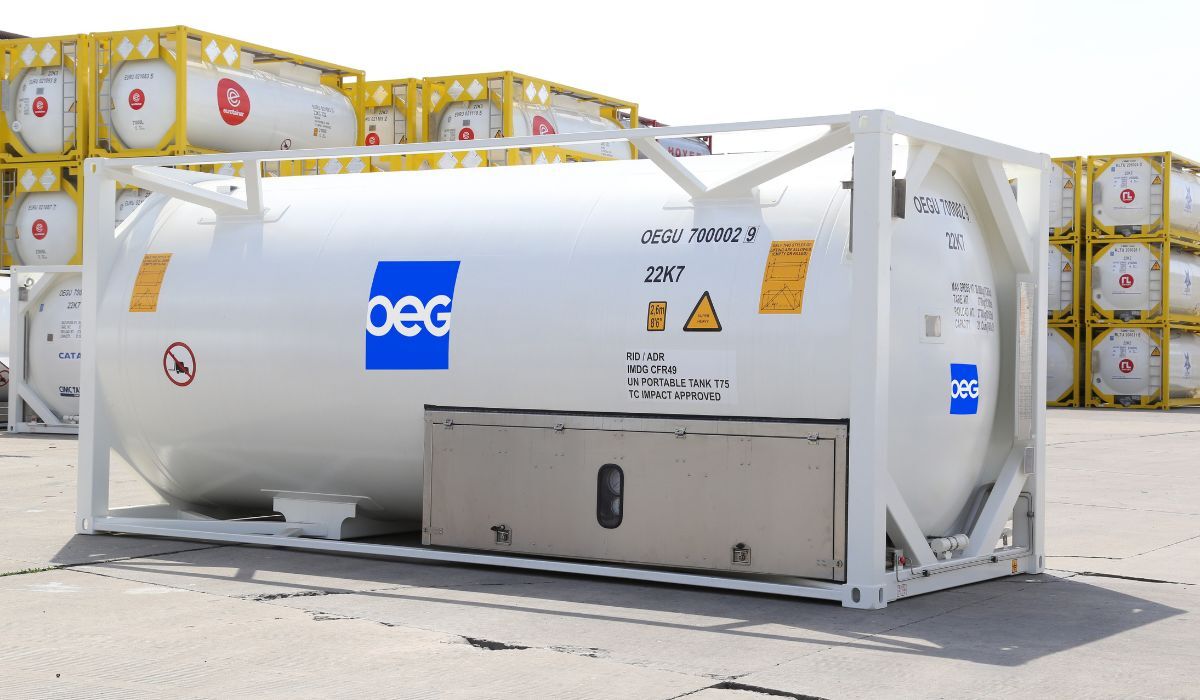

20ft T75 Cryogenic Tank
Working Pressure
22 bar / 320 psi
External Dimensions (L x W x H)
6,058mm x 2,438mm x 2,591mm
20' x 8' x 8.5'
Capacity
22,000 litres / 5,548 US gallons
Max. Gross Weight
36,000 kgs / 79,366 lbs
Tare Weight
8,900 kgs / 19,621 lbs
Payload
27,300 kgs / 60,187 lbs

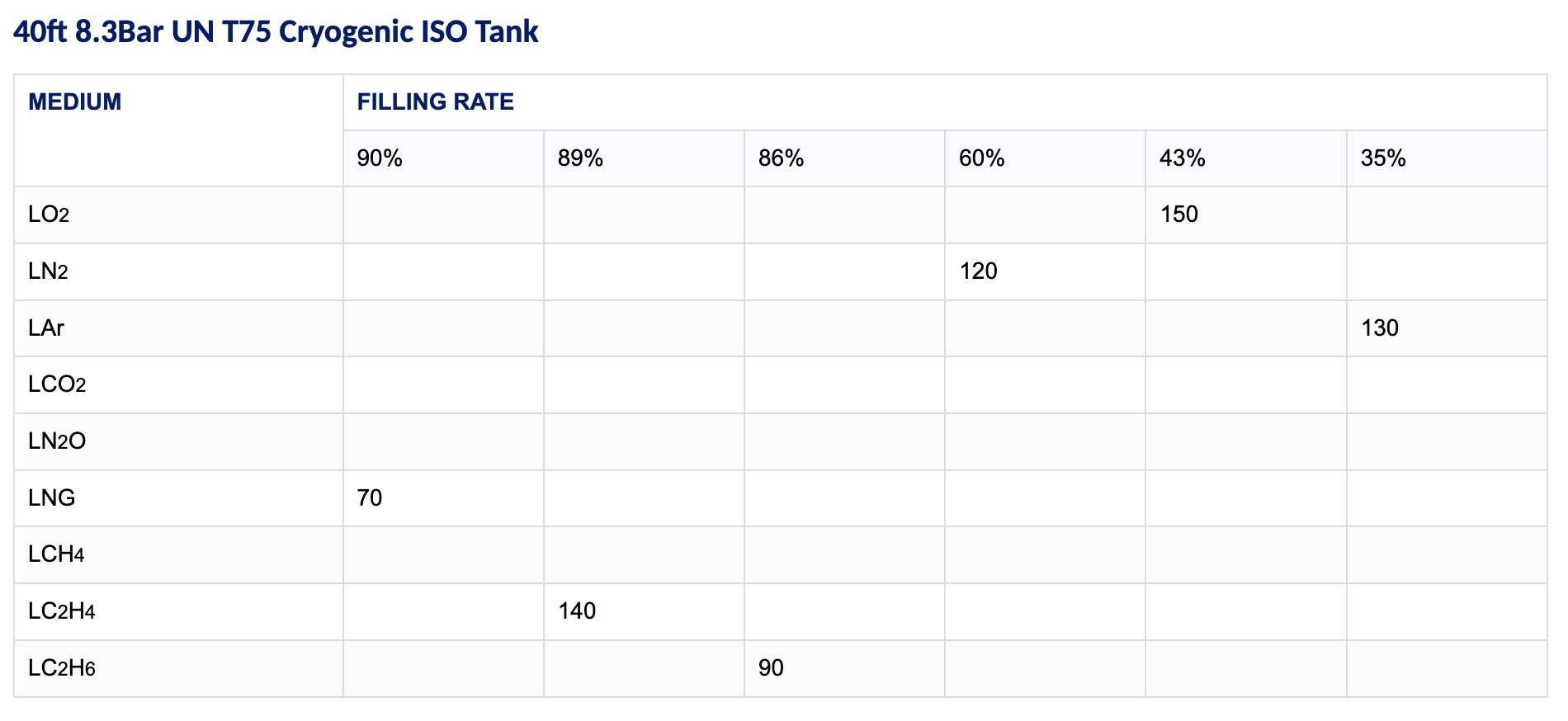

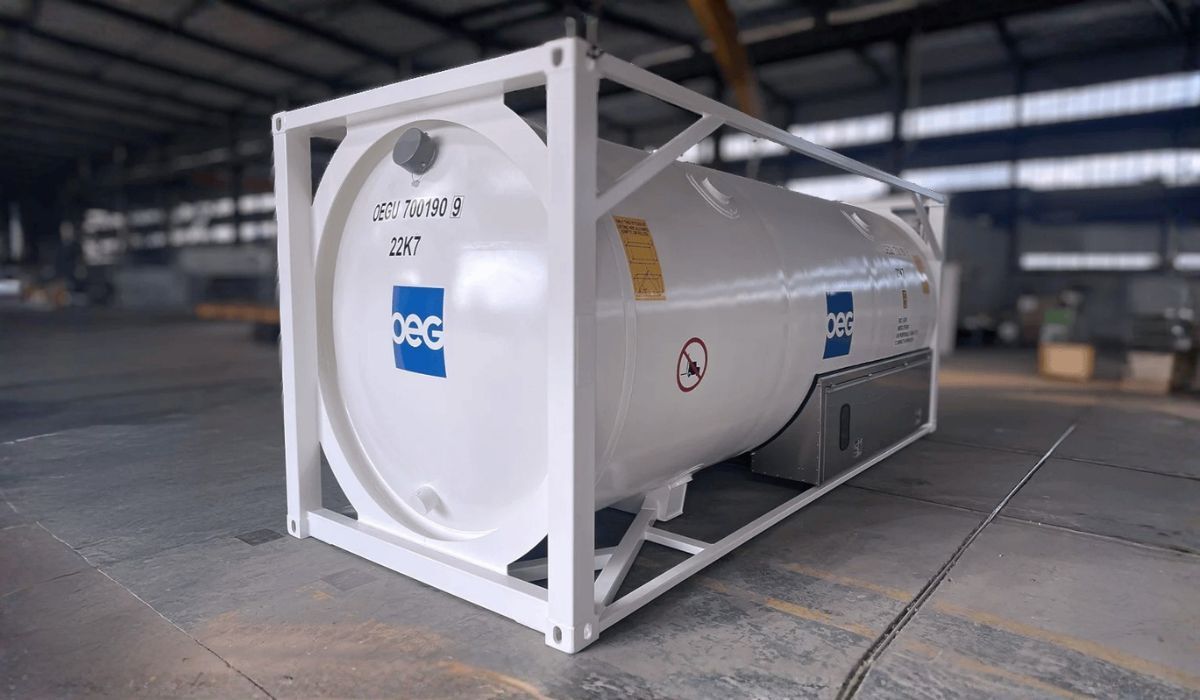

40ft T75 Cryogenic Tank
Working Pressure
8.3 bar / 120 psi
External Dimensions (L x W x H)
12,192mm x 2,438mm x 2,591mm
40' x 8' x 8.5'
Capacity
45,500 litres / 12,020 US gallons
Max. Gross Weight
34,000 kgs / 74,957 lbs
Tare Weight
12,200 kgs / 26,896 lbs
Payload
21,800 kgs / 48,061 lbs
Leading energy supply chain partner
OEG ISO tank containers provide sustainability, safety and efficiency in the industrial gas supply chain network. Cryogenic ISO tank containers are deployed in the liquefied natural gas (LNG) market for the following applications: storage, ship bunkering, cooldown of storage facilities, mobile fuel stations and virtual pipelines.
Why use OEG's Cryogenic tanks?
Our ISO tanks offer state-of-the-art equipment of 22 bar pressure, thus giving the capability to load and transport a wider range of liquified natural gas (LNG) products namely Nitrogen, Argon, Oxygen, CO₂, N20, LNG and Ethylene. Furthermore, our tanks are robust and flexible to use and offer optimal payload performances and innovative solutions.

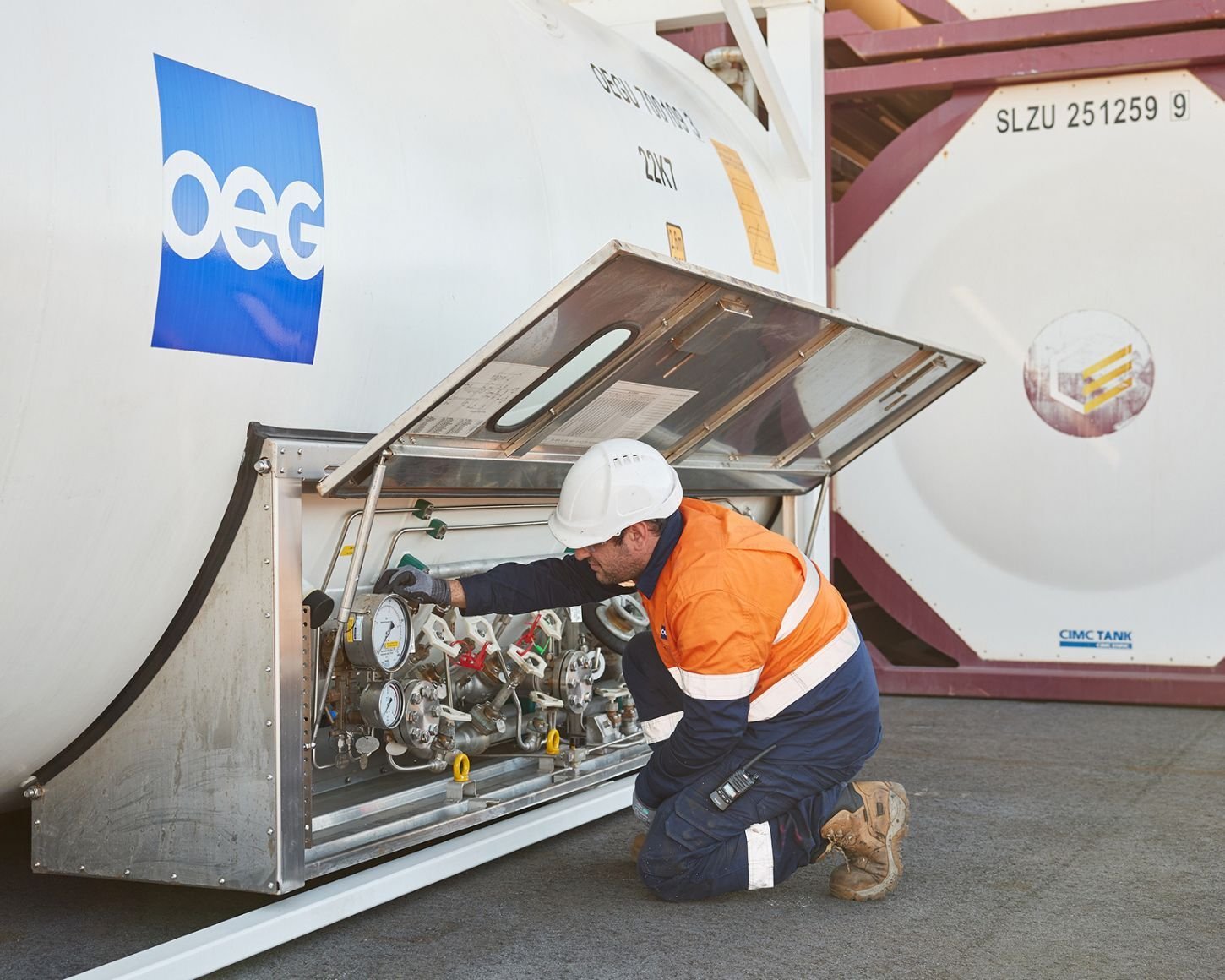

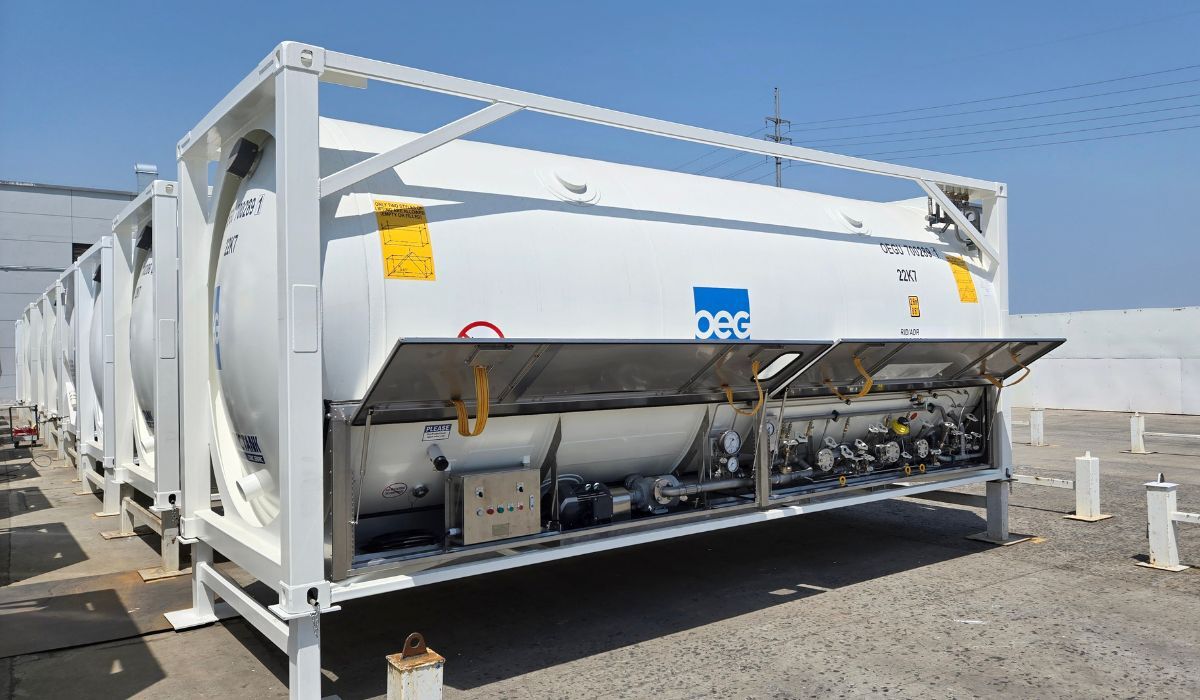

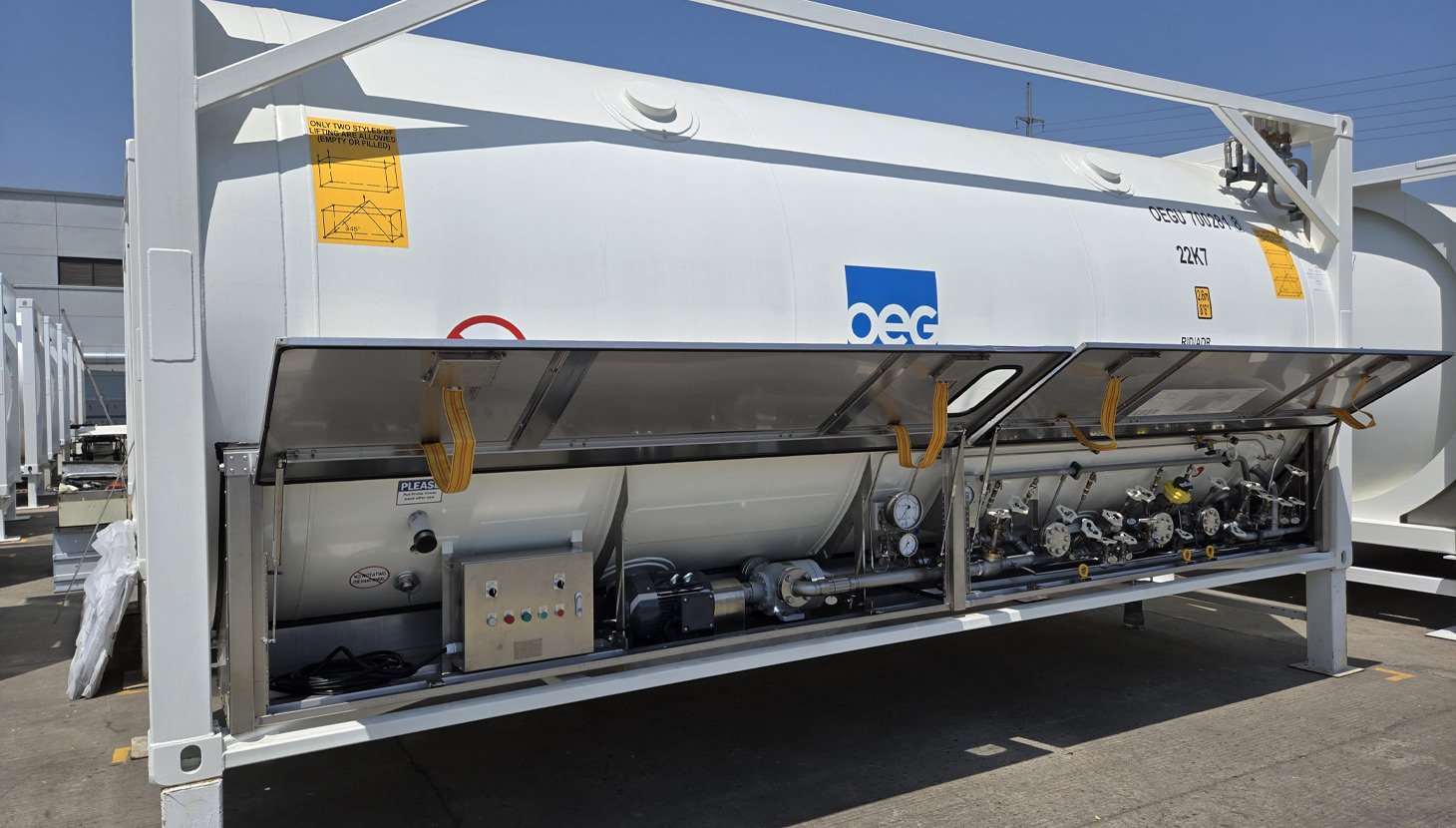

Furthermore, our ISO containers are also fitted with pressure build-up units which can be augmented by additional skid-mounted pressure build up units (PBUs) to meet the challenges of unloading with sufficient differential pressure.
Meeting international standards
All our cryogenic ISO tanks comply with all international regulations such as RID/ADR, IMDG, ASME V111 DIV 1, US DOT CFR 49 , TIR , TC , CCC, CSC , LR plus additional Australian National Registration and Malaysian DOSH-PMT.
Trust OEG Offshore to uphold the highest standards among ISO tank companies.
